Plot stimulus-layout quality control — plot_gazepoint_stimulus_layout

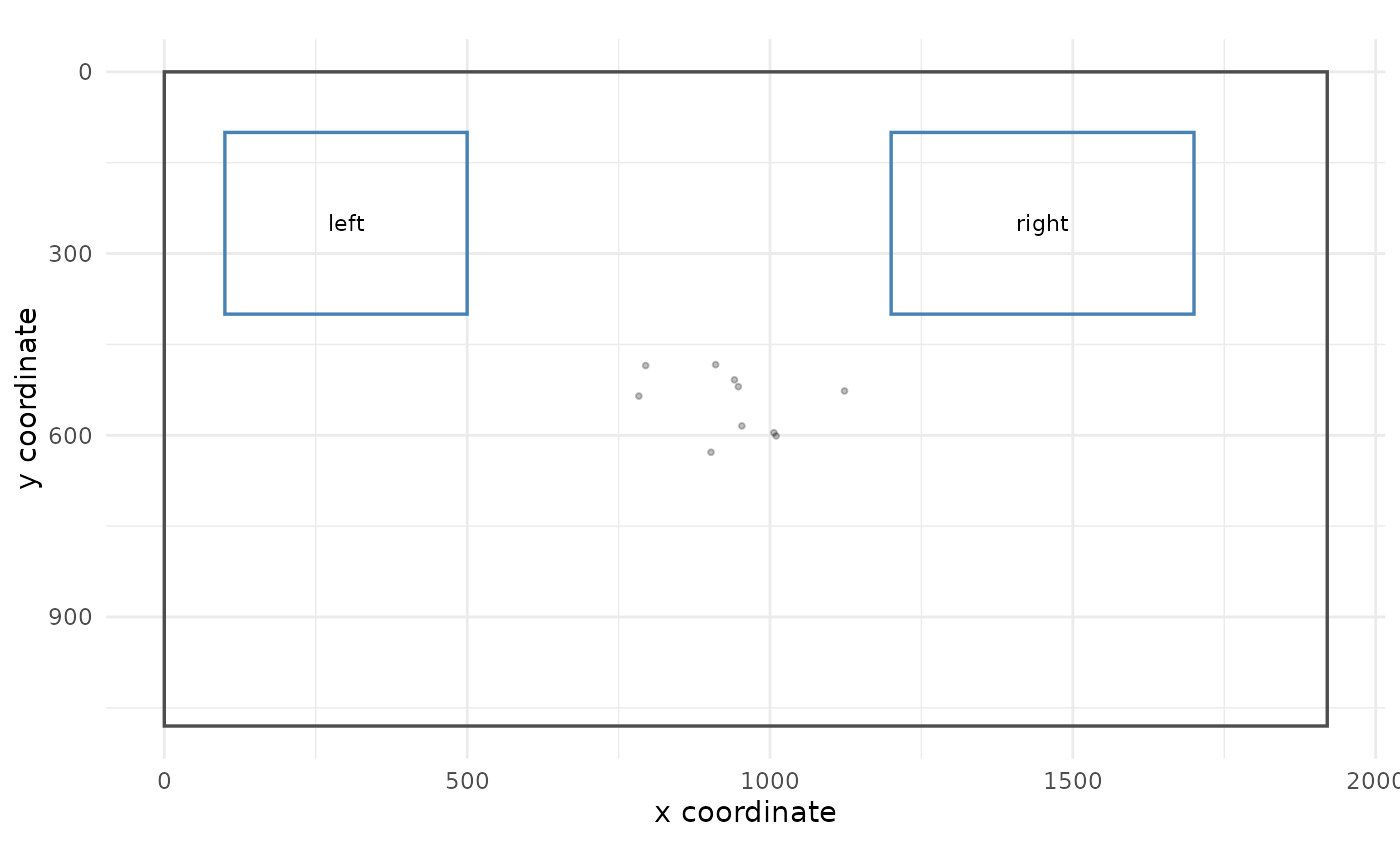

Draws screen/stimulus bounds, rectangular AOIs, and optional gaze coordinates. The plot is intended for visual quality review of coordinate systems, AOI placement, and gaze coverage. It is descriptive and should not be interpreted as an inferential attention analysis.

Usage

plot_gazepoint_stimulus_layout_qc(
  aoi_data,
  screen_width,
  screen_height,
  aoi_col = NULL,
  x_min_col = "x_min",
  x_max_col = "x_max",
  y_min_col = "y_min",
  y_max_col = "y_max",
  gaze_data = NULL,
  gaze_x_col = NULL,
  gaze_y_col = NULL,
  reverse_y = TRUE,
  show_aoi_labels = TRUE,
  show_gaze = TRUE,
  gaze_alpha = 0.25,
  gaze_point_size = 0.7,
  title = NULL
)

Arguments

aoi_data: A data frame containing rectangular AOI geometry.
screen_width, screen_height: Numeric screen or stimulus dimensions.
aoi_col: Optional AOI identifier column.
x_min_col, x_max_col, y_min_col, y_max_col: Character names of AOI rectangle boundary columns.
gaze_data: Optional data frame containing gaze coordinates.
gaze_x_col, gaze_y_col: Character names of gaze-coordinate columns in gaze_data.
reverse_y: If TRUE, reverses the y-axis to match common screen coordinate conventions with the origin at the top-left.
show_aoi_labels: If TRUE, AOI labels are drawn at rectangle centres.
show_gaze: If TRUE, gaze points are shown when gaze_data is supplied.
gaze_alpha: Opacity of gaze points.
gaze_point_size: Size of gaze points.
title: Optional plot title.

Value

A ggplot object.

Examples

aoi <- data.frame(
  aoi = c("left", "right"),
  x_min = c(100, 1200),
  x_max = c(500, 1700),
  y_min = c(100, 100),
  y_max = c(400, 400)
)
gaze <- simulate_gazepoint_pupil_data(n_subjects = 1, n_trials = 1, n_time_bins = 10, seed = 1)
plot_gazepoint_stimulus_layout_qc(
  aoi,
  screen_width = 1920,
  screen_height = 1080,
  aoi_col = "aoi",
  gaze_data = gaze,
  gaze_x_col = "gaze_x",
  gaze_y_col = "gaze_y"
)
