Plot a descriptive sequence-group comparison

Usage

plot_sequence_group_comparison(
  comparison,
  component = c("state", "transition", "length"),
  measure = NULL,
  top_n = 12L,
  main = NULL,
  xlab = NULL,
  ylab = NULL,
  ...
)

Arguments

comparison: A result from compare_sequence_groups().
component: "state", "transition", or "length".
measure: Measure to display. Defaults depend on component.
top_n: Maximum states or transitions to display.
main, xlab, ylab: Plot labels.
...: Additional base-graphics arguments.

Value

The plotted summary data, invisibly.

Examples

sequences <- data.frame(
  sequence_id = rep(c("s1", "s2", "s3", "s4"), each = 4L),
  sequence_order = rep(1:4, times = 4L),
  state = c("A", "B", "C", "D", "A", "B", "C", "C",
            "D", "C", "B", "A", "D", "C", "A", "A"),
  group = rep(c("g1", "g2"), each = 8L),
  stringsAsFactors = FALSE
)
comparison <- compare_sequence_groups(sequences, group_col = "group")

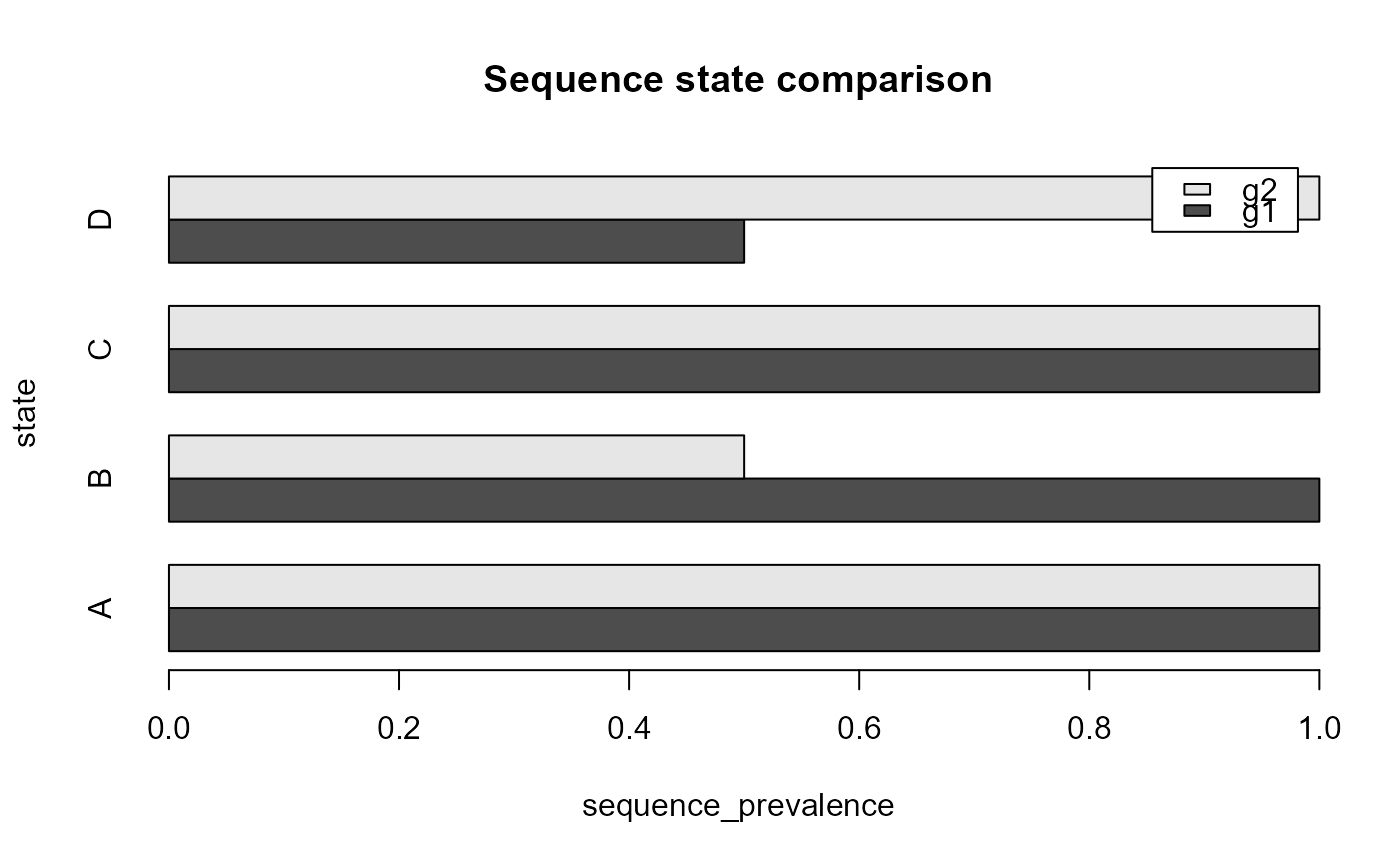

plot_sequence_group_comparison(comparison, component = "state")
