Plot a consensus sequence

Plot a consensus sequence

Usage

plot_consensus_sequence(
  consensus,
  type = c("agreement", "states"),
  group = NULL,
  main = NULL,
  xlab = "Sequence position",
  ylab = NULL,
  ...
)

Arguments

consensus

A consensus result.

type

"agreement" or "states".

group

Optional group value, encoded group key, or named list of values when grouped consensus was created. It is required when more than one consensus group is present.

main, xlab, ylab

Plot labels.

...

Additional arguments passed to base graphics.

Value

The plotted data, invisibly.

Examples

sequences <- data.frame(
  sequence_id = rep(c("s1", "s2", "s3", "s4"), each = 4L),
  sequence_order = rep(1:4, times = 4L),
  state = c("A", "B", "C", "D", "A", "B", "C", "C",
            "D", "C", "B", "A", "D", "C", "A", "A"),
  group = rep(c("g1", "g2"), each = 8L),
  stringsAsFactors = FALSE
)
consensus <- create_consensus_sequence(sequences)

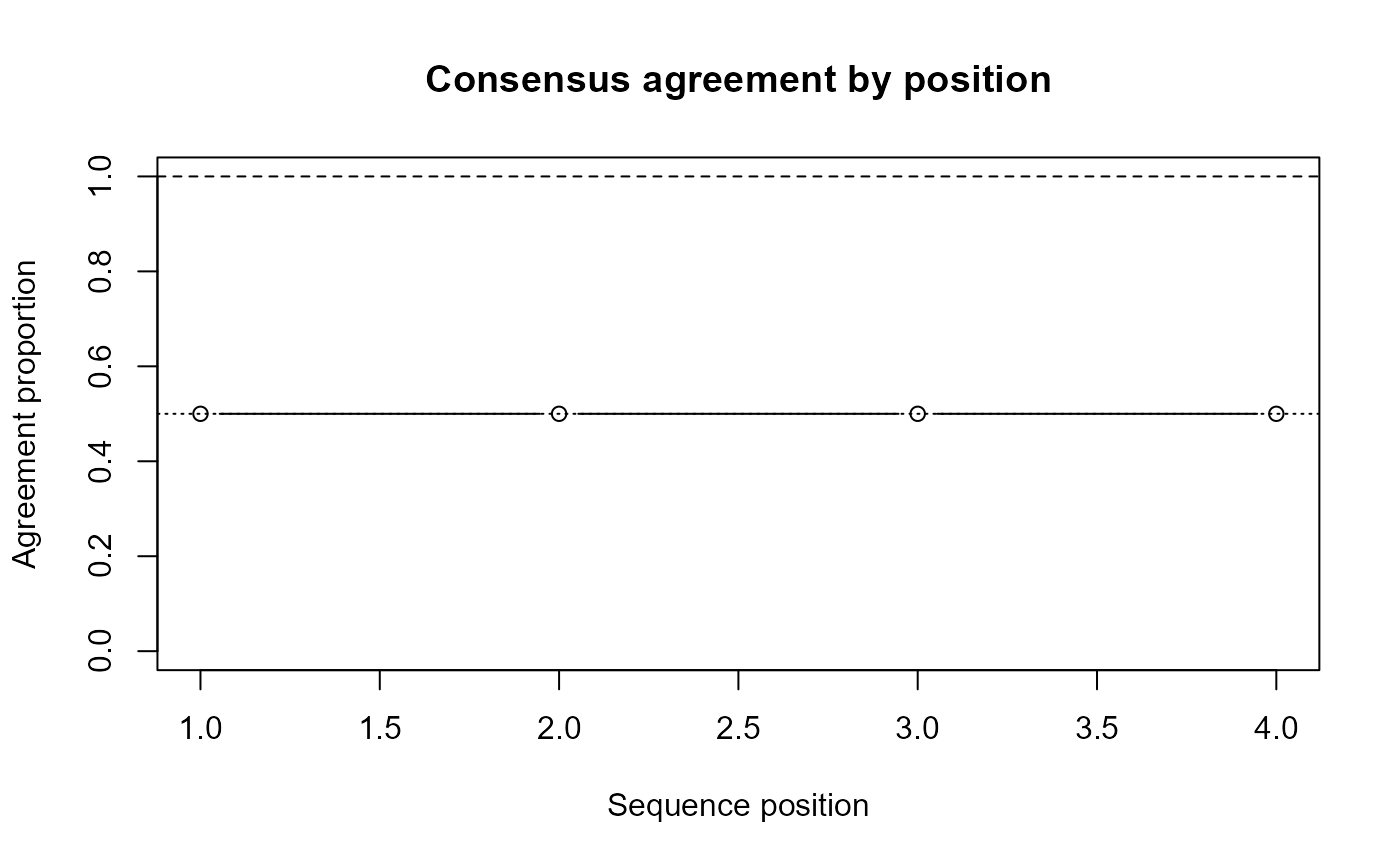

plot_consensus_sequence(consensus)
